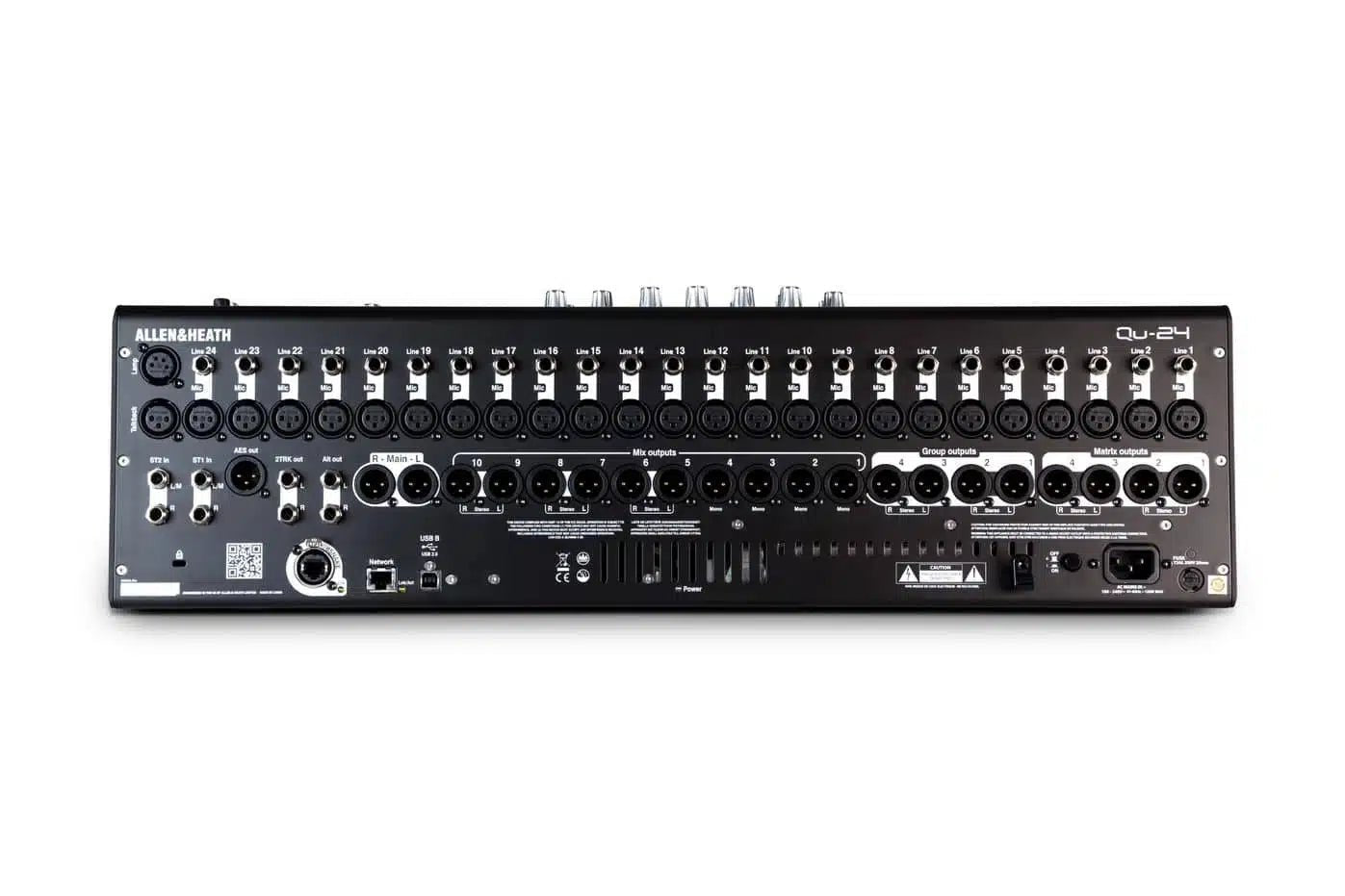

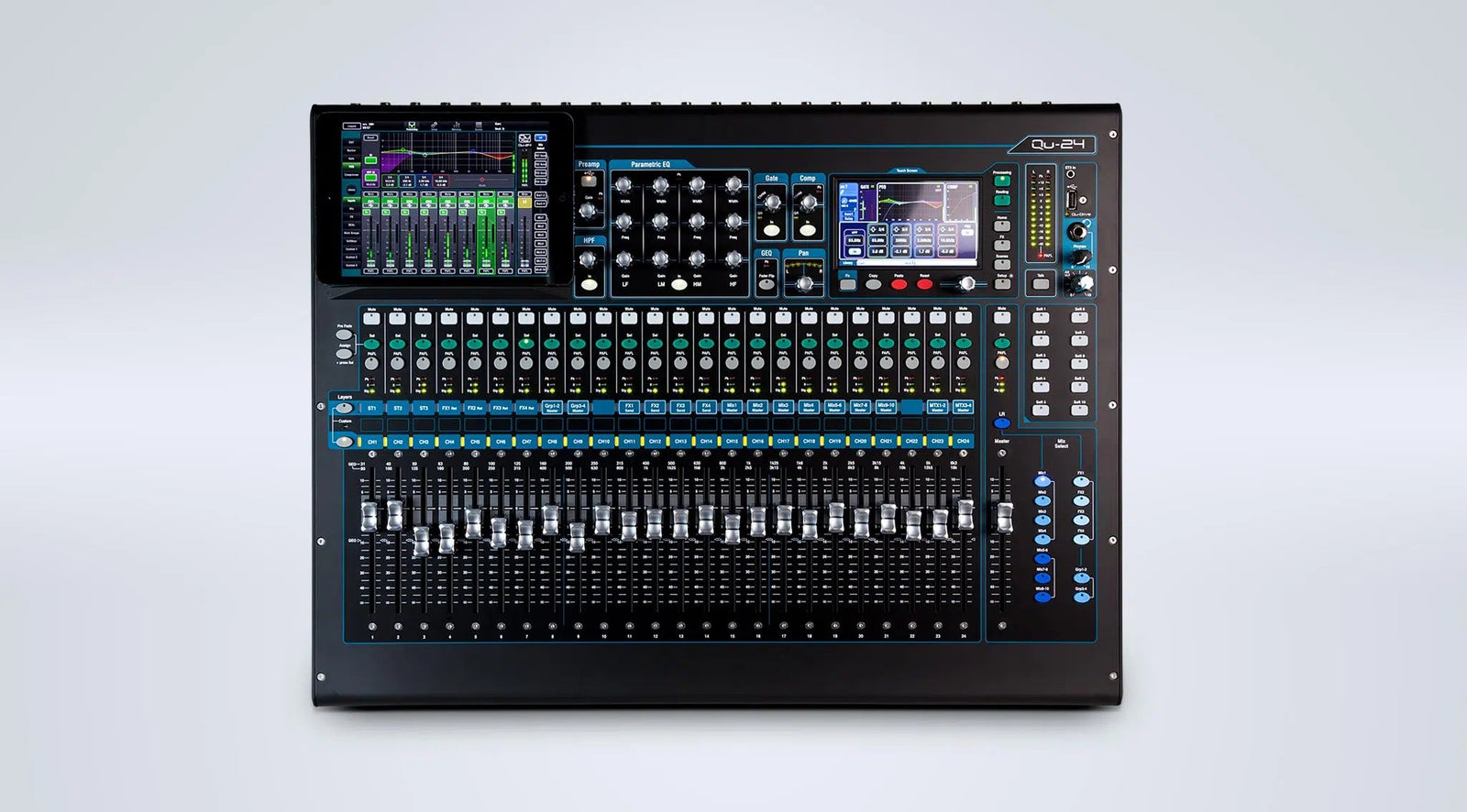

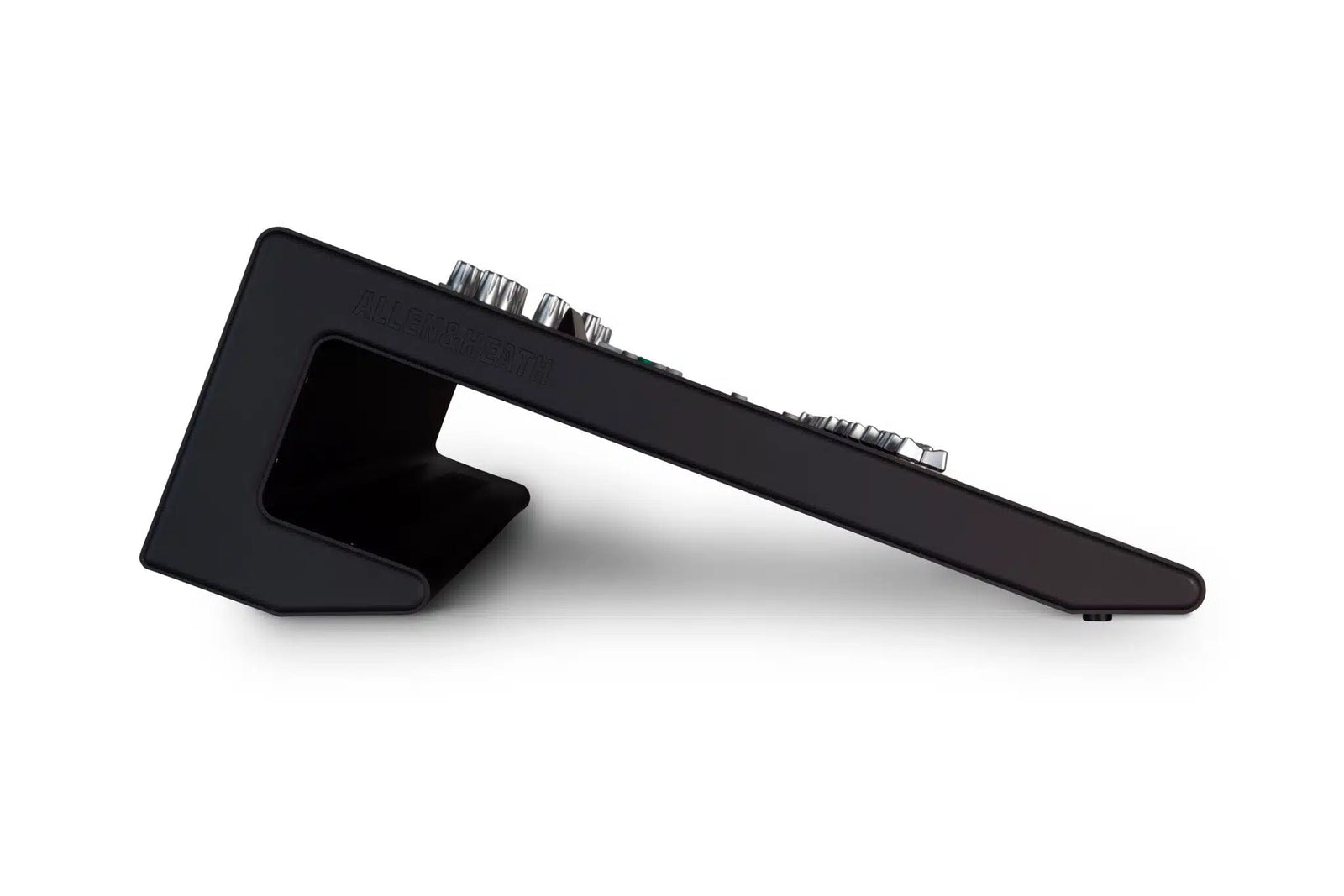

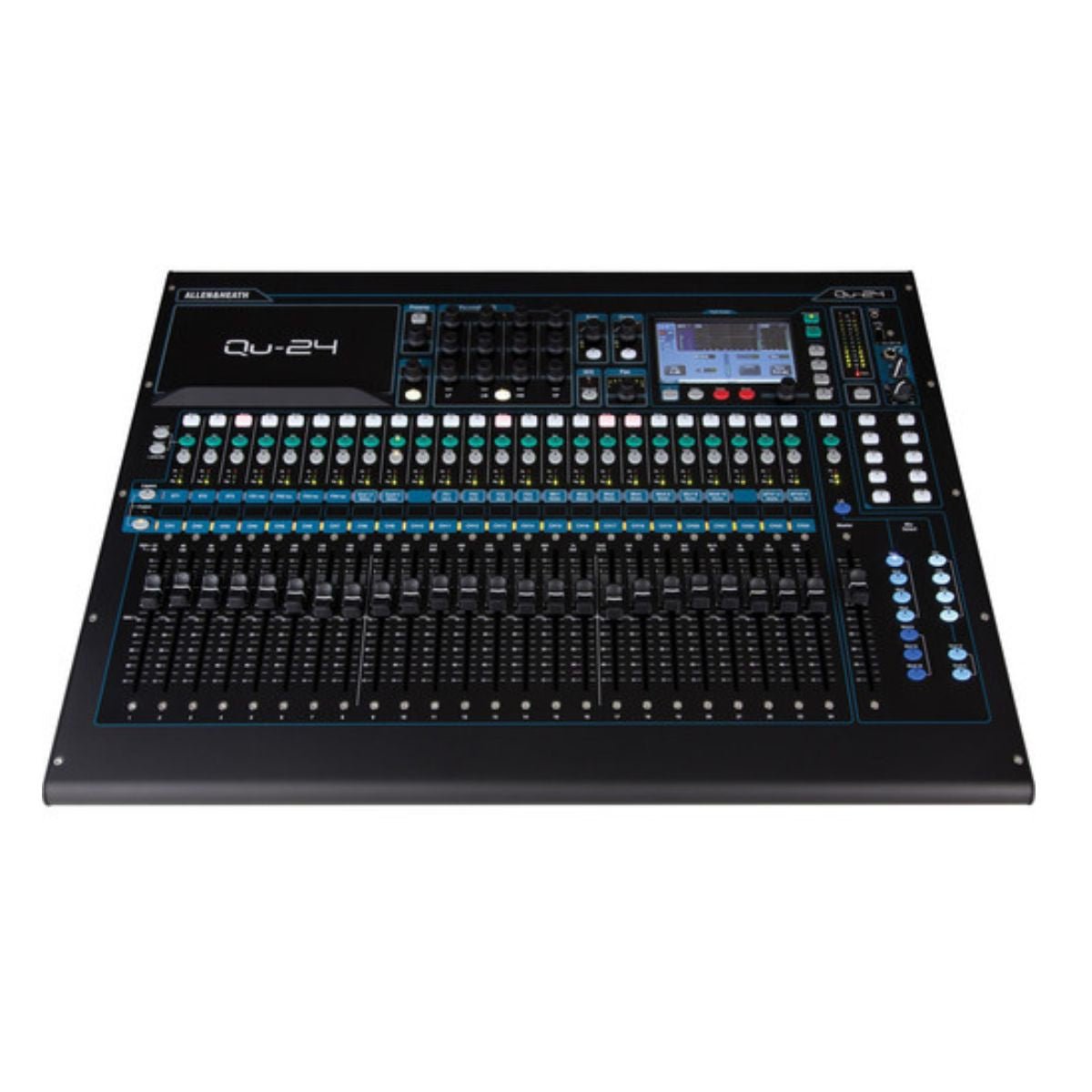

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer

$3,199.95
Out stock -
Allen & Heath Qu-24C 30-In/24-Out Digital Mixer
Allen & Heath Qu-24C 30-In/24-Out Digital Mixer
Allen & Heath Qu-24C 30-In/24-Out Digital Mixer
Allen & Heath Qu-24C 30-In/24-Out Digital Mixer

Allen & Heath Qu-24C 30-In/24-Out Digital Mixer

$3,199.95
Out stock -
$3,199.95
- +
Details
  • SKU: AH-QU-24C
  • Brand: Allen & Heath
  • Type: Live Sound
  • Availability: Out stock
Description

FEATURE SUMMARY

  • 24 Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQTM Preamps
  • 3 Stereo Inputs (TRS)
  • 20 Mix Outputs (XLR)
  • 2 Stereo Groups (switchable to Mix mode)
  • Up to 9 Monitor Mixes (4 mono + 5 stereo)
  • 2 Stereo Matrix Outs
  • 4 FX Engines
  • 4 dedicated FX Sends / Returns
  • 4 Mute Groups
  • 4 DCA Groups
  • AES Digital Out
  • 32×30 USB Audio Interface
  • dSNAKETM Remote Audio Port
  • 25 Motor Faders
  • 800×480 Touchscreen
  • 10 Soft Keys
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • Automatic Mic Mixer
  • Channel Ducker on all Inputs
  • ProFactory Mic Presets
  • RackFX Library
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid feedback elimination and room acoustics
  • Qu-Drive Direct Multitrack Recording / Playback on USB drives
  • DAW MIDI Control
  • Qu-Pad iPad App
  • Qu-You iPhone / Android personal monitoring app
  • Qu-Control customisable iOS app for simple wireless control
  • Compatible with ME Personal Mixing System

Qu-24’s built-in audio interface streams up to 32 selectable tracks to your Mac or PC, and returns from the computer can be easily assigned to the Input channels.

The interface is class-compliant on Mac OS X making it truly plug ‘n play and will be recognized straight away by any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools. An ASIOTM and WDM compatible driver is available for Windows computers.

Standard MIDI control is tunnelled over the USB and network connections, this can be mapped to the faders of your favourite DAW using the A&H MIDI Control app which provides easy setup and emulation of HUI or Mackie Control protocols on Mac OS X and Windows systems.
