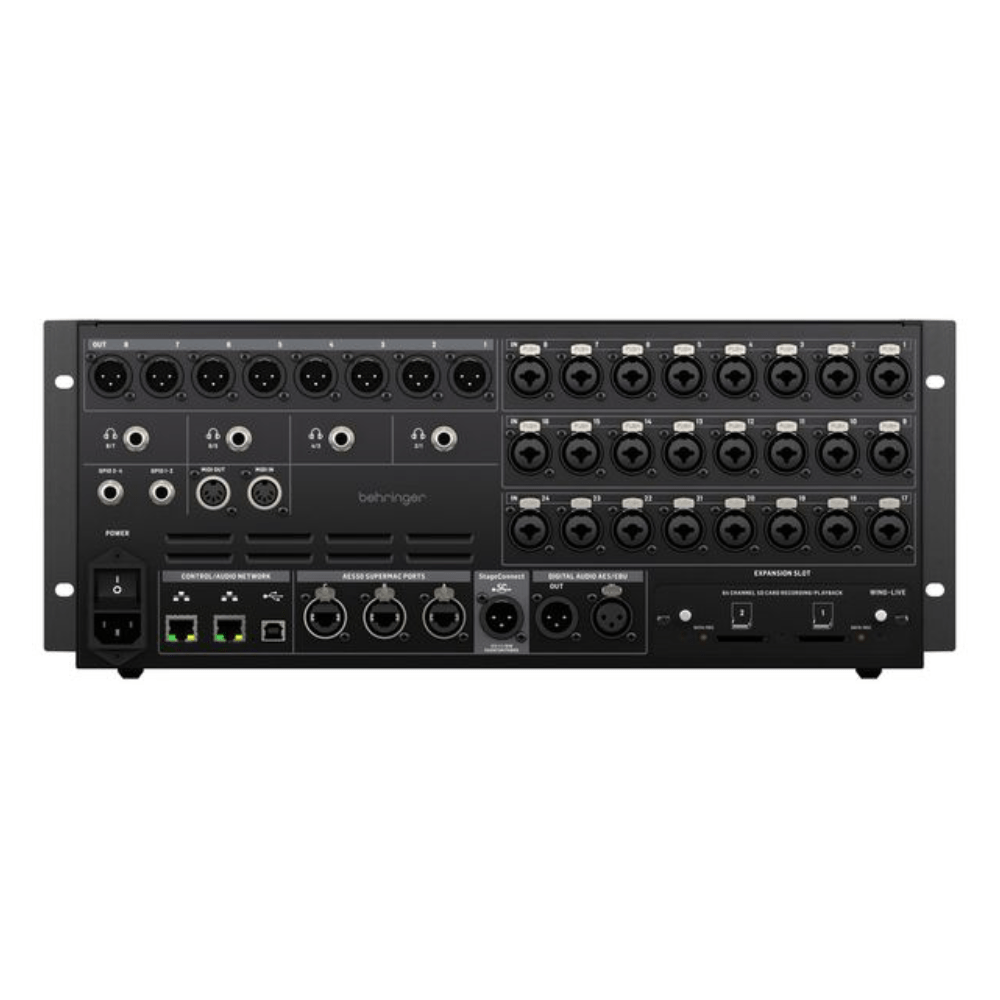

Rackmount 48 Channel, 28 Bus Full Stereo Digital Mixing Engine within 24-Midas PRO Preamps,
8 Midas PRO Outputs and 10.1" Touch Screen

Experience 48 Amazing FlexChannels

• Stereo or Mono — You Decide

  Set all channel and buses to mono, stereo or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all.

• Superior Sound, Seamless Setup

  Give musicians an immersive experience of full stereo in-ear monitoring with WING's 28 stereo busses. You can also add stereo insert effects to any channel with just a single click!

• Limitless Potential

  WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo or M/S format.

Take Full Control

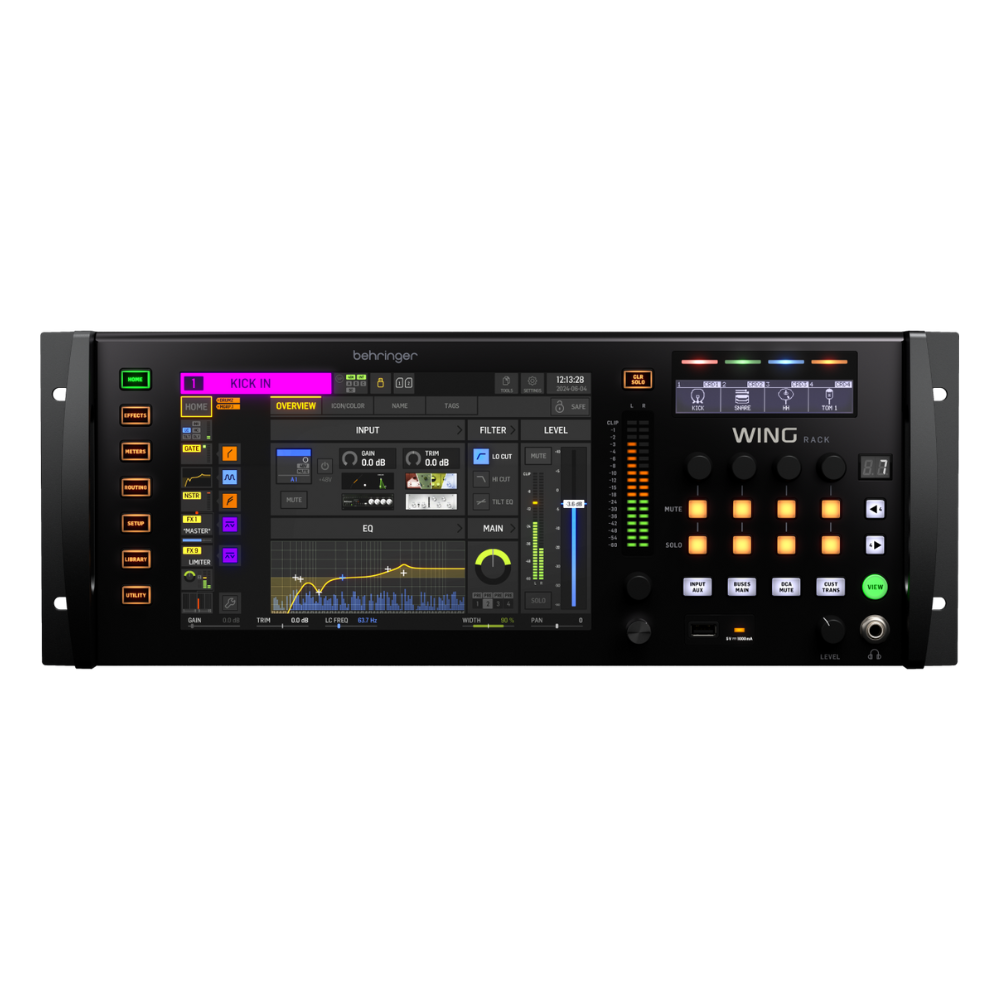

• WING RACK features a control front panel on a unique swivel, allowing for fully convenient operation. Its dedicated Custom Control section, with 16 customizable layers and 3 pre-configured channel layers, is clearly labeled on a separate LCD. The large touch screen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.

Finally, All the Preamps You Need

• 24 Midas PRO Preamps On Board

  Just like the venerable Midas M and PRO series mixers, WING RACK also comes with 24 Midas PRO preamps, delivering the same sweet sound and huge dynamic range.

• All the Digital I/O

  It’s tiny but uncompromising. The WING RACK has exactly the same number of digital I/O as the full-size WING: AES50, USB, AoIP, StageConnect—you name it.

Features:

• Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING console
• 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels
• 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains
• 10.1-in. capacitive touchscreen provides full access to all features and parameters — no tablet required
• A suite of external remote control software facilitates offline mixing on mobile and desktop
• 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound

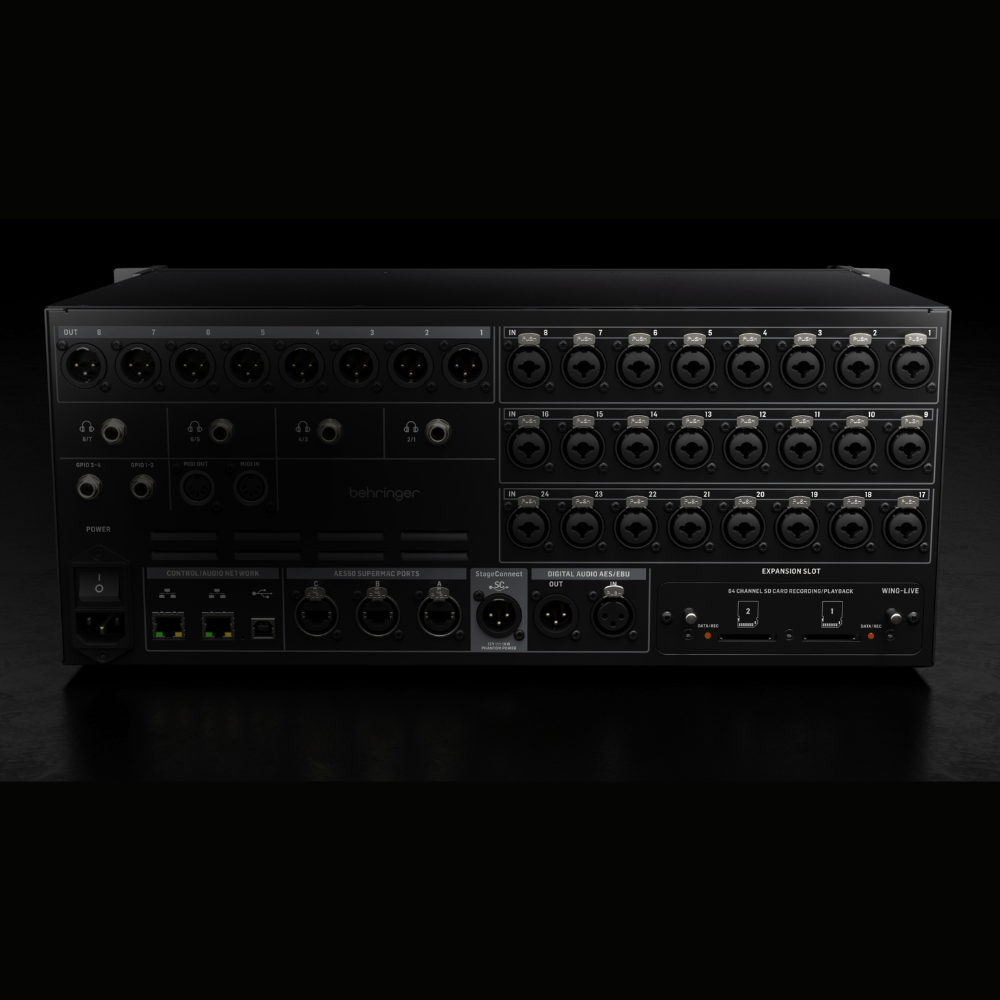

• 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
• AES50 networks are compatible with Midas M32 and Behringer X32 mixers
• 32-channel StageConnect interface for personal monitoring or analog I/O boxes
• Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and GPIO ports
• 4 additional rear-panel stereo outputs with high-performance headphone amplifiers are tailor-made for IEM applications
• Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
• WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
• Optional expansion cards supply Dante support
• Built-in 48-in/48-out USB audio interface
• Sources put the emphasis on your source audio rather than on your inputs and channels
• Apply names, icons, and colors to each Source for at-a-glance identification
• Each channel can be either mono, stereo, or mid-side — no channel linking required
• 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs
• Space-saving 4U rackmount form factor
