The Mackie ProFX22v3 is a 22-channel mixing console featuring 17 Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, houses of worship, rehearsal studios, and more. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

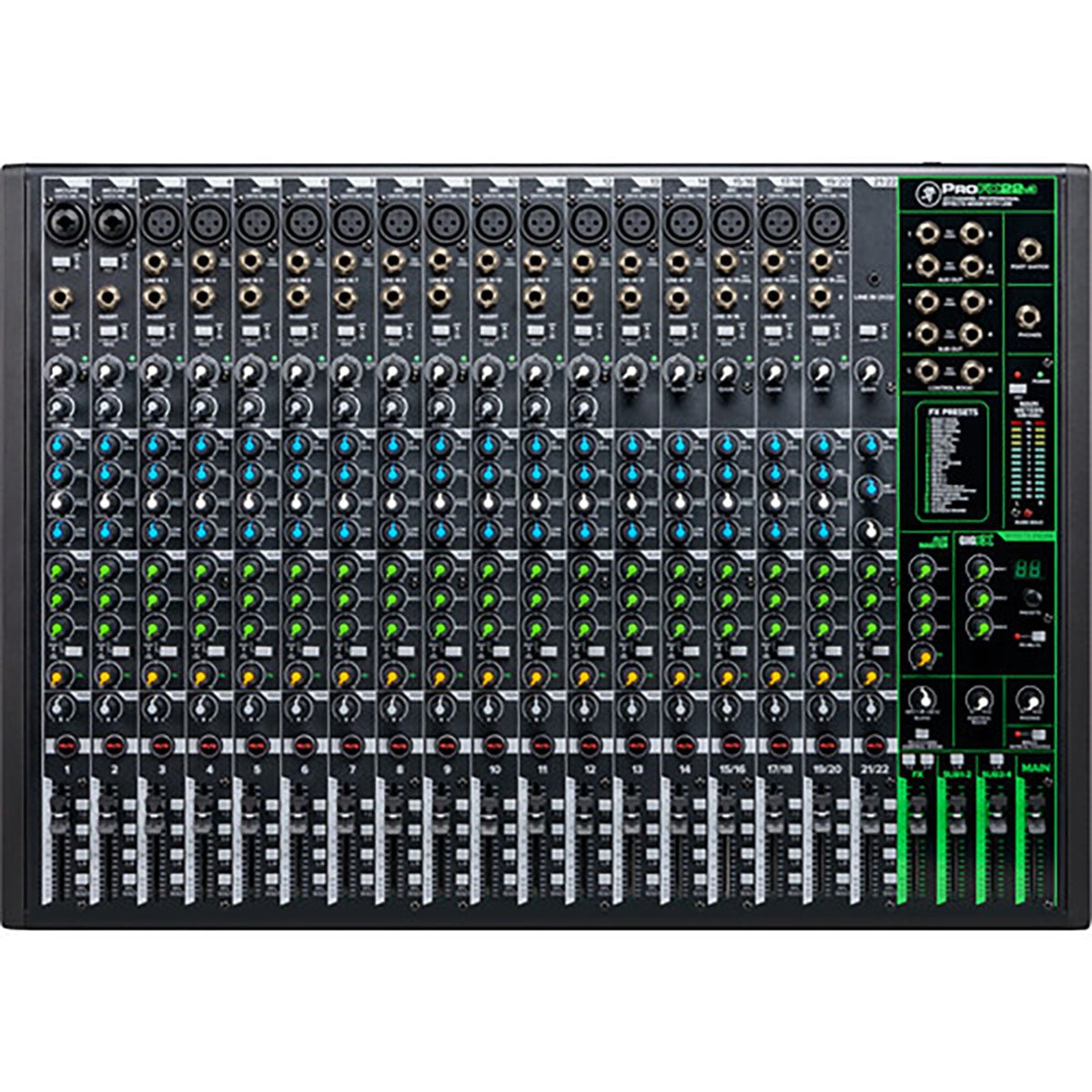

Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-20 offer XLR or 1/4" inputs. Channels 1-12 provide single-knob compressors, while channels 1-14 include inserts. Channels 15/16, 17/18, and 19/20 offer two 1/4" line inputs each (L and R for stereo), while channel 21/22 uses a 3.5mm stereo input. Channels 1-22 feature gain controls, a 3-band EQ, three aux sends for monitors, a dedicated FX send, pan, mute, and level faders. Engaging channel 21/22's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.

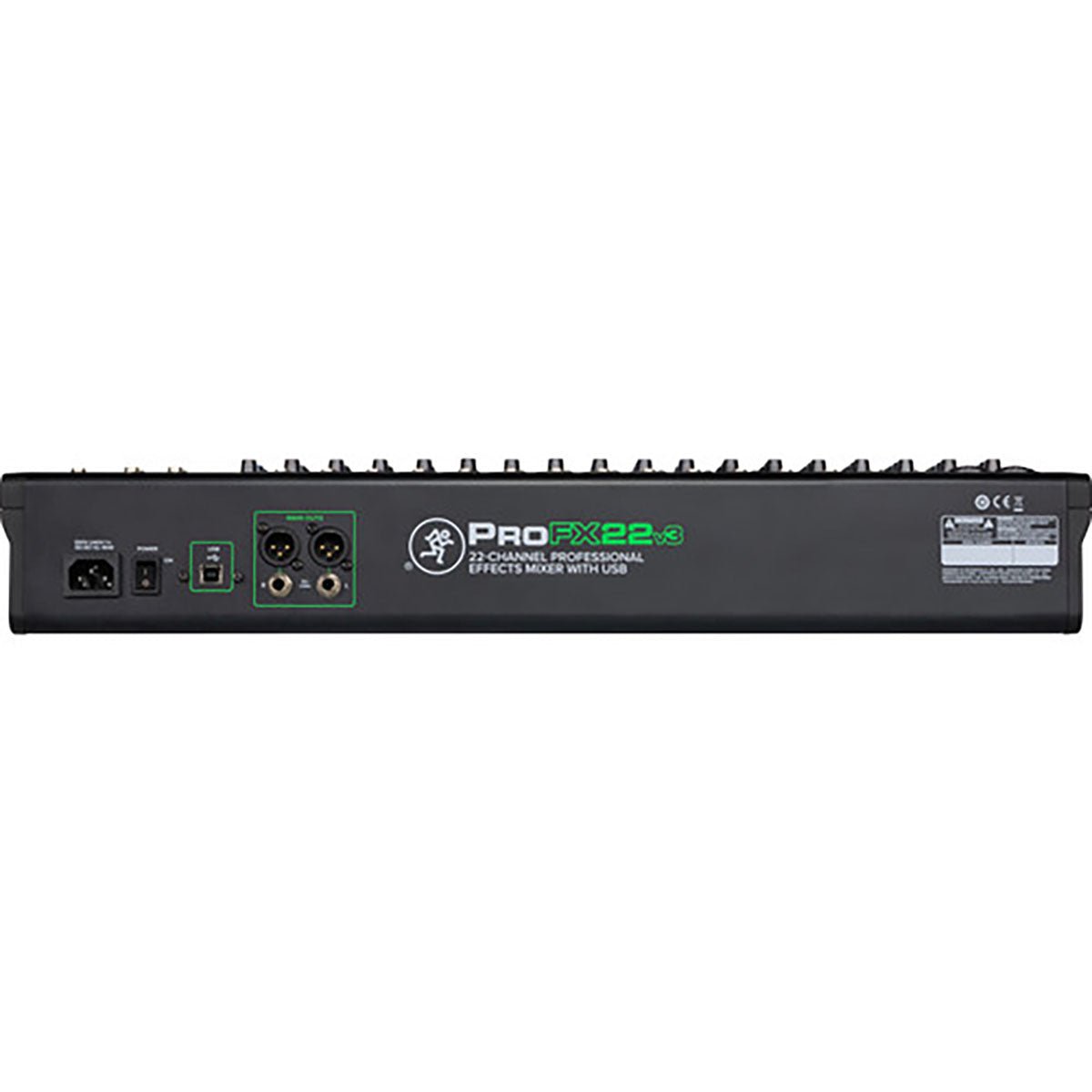

Each channel strip includes button selectors for Main L/R, Sub 1-2, Sub 3-4, and PFL SOLO. The master section offers dedicated faders for Main, Sub 1-2, Sub 3-4, and FX. Main output connectors include both XLR and 1/4", while sub and control room outputs use 1/4" connectors. A dedicated 1/4" TRS headphone output includes its own independent level control. Other features include an input / USB 1-2 blend control, a dedicated FX output, an FX level fader, and an FX mute, which can also be controlled via the 1/4" footswitch input.
The ProFX22v3 features a download for ProTools I First and Waveform software and The Musician's Collection plug-in package including 23 high-quality plugins with BBD Delay, Level Lite, 304E EQ, and 304C Compressor. To authorize the software, simply input the mixer's serial number on the website. The Mackie ProFX22v3 includes a USB cable and an IEC cable for powering the unit.
