Midas HUB4 is the multi-tool in your stage rack providing analogue and digital outputs for various applications. HUB4 can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit / 48 kHz audio. HUB4 also collects 48 channels of upstream audio and forwards this audio to the FOH console, either from stage boxes connected to the AES50-B (THRU) Port or 8 return channels from each of Ports 1-4.

Cascading Hubs for Large Setups

To meet the challenges of large monitoring setups, HUB4 can easily be daisy-chained to make additional DP48 ports available, all the way up to symphonic orchestra applications.

On the other hand, HUB4 can also address situations where you want to connect additional I/O via the same AES50 link to the mixing console. To help build out this AES50 console link, digital stage boxes such as the Midas DL16 or DL32 can be connected to the HUB4’s AES50-B (THRU) Port. The console can pass downstream signals to their respective stage outputs, while also receiving 48 channels upstream from the stage inputs via HUB4.

Analogue Outputs for IEM Transmitters

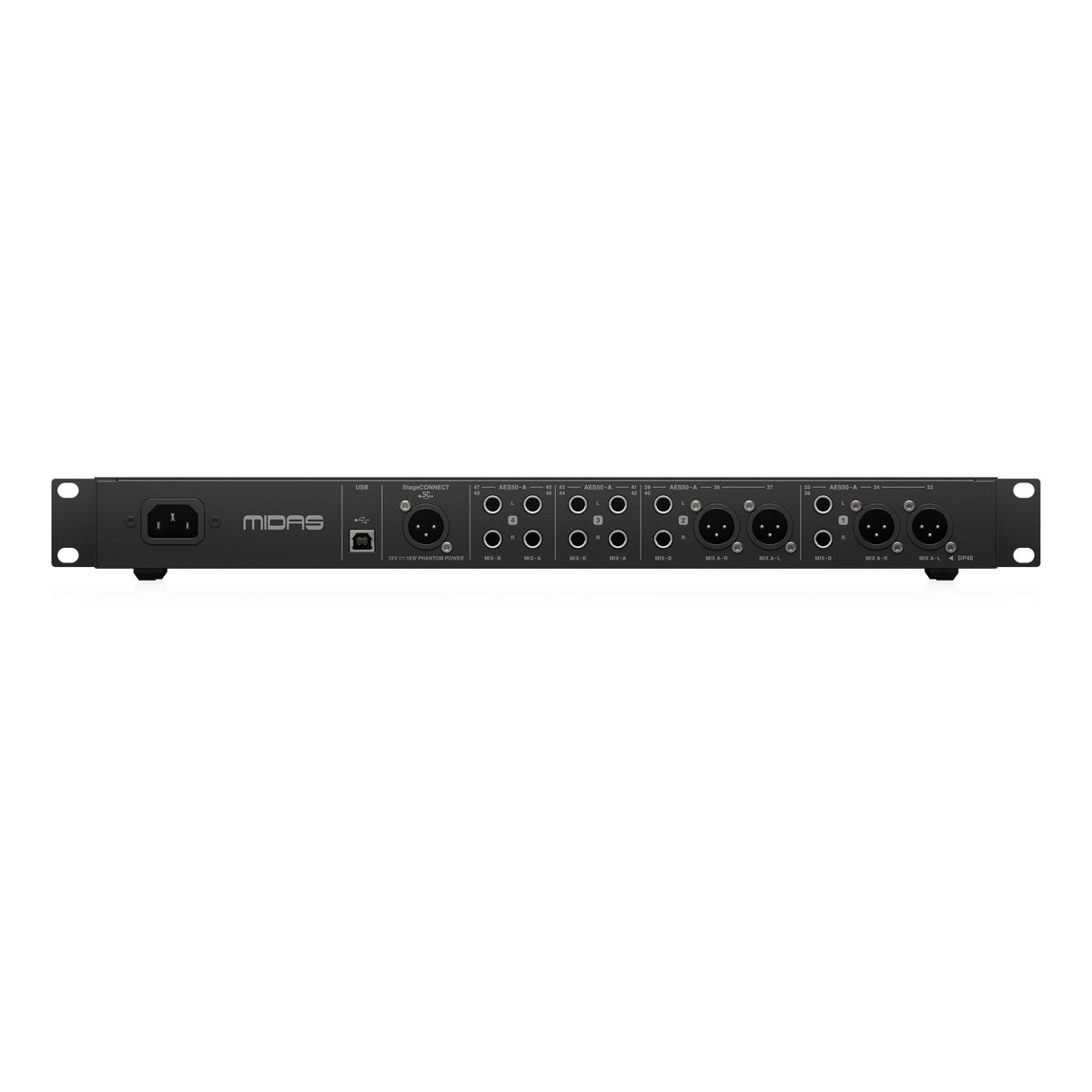

HUB4 features 16 balanced line-level outputs that can carry the 8 stereo mixes from the connected DP48 mixers for connections in the side rack. So there is no need to run additional lines from personal mixers to the transmitters, reducing setup time and reliability considerably. Alternatively, these analogue outputs can also be used as spare outputs on stage receiving signals directly from the FOH consoles, e.g. for providing talkback or side fill outputs.

Support from Midas M32 Series Consoles

HUB4 can convey control messages from M32 FOH consoles to DP48 personal mixers, as well as remote control messages between DP48 units.

Midas DP48 Personal Monitor Mixers support remote control of other DP48 units and can also receive control information from M32 mixing consoles. This M32 control information includes assignments, names and colors of channels, which are transmitted via AES50 for easy configuration of personal mixers. HUB4 can convey control messages from the FOH console to personal mixers as well as between personal mixers. This control message system works when DP48 units are connected to Ports 1-4 or to the ports on daisy-chained hubs.

Midas DL8 PoE (Power over Ethernet) Powered Stage Boxes

HUB4 easily interfaces with the new Midas DL8 stage box, which makes bulky analog sub-snakes a thing of the past. The DL8 stage box can be connected to one of HUB4 Ports 1-4 using only a simple CAT5E STP cable. This cable connection from HUB4 can directly power up to 4 stage boxes via PoE support – IEEE802.3at per port – allowing for shorter analogue lines on stage.

Remote Control Forwarding Through HUB4

HUB4 also facilitates one of the exceptional features of DP48 Personal Monitoring systems in which one DP48 unit can be designated as Master and used to control one or more DP48 units in Slave mode. HUB4 ensures that personal mixers are enumerated and that the Master, i.e., the DP48 connected to Port 1 of the first HUB4 in a daisy-chain, can control the respective Slaves. This way either a tech-savvy bandmate or the technician can help talents on stage with their personal monitor sound.

Controls & Connectivity

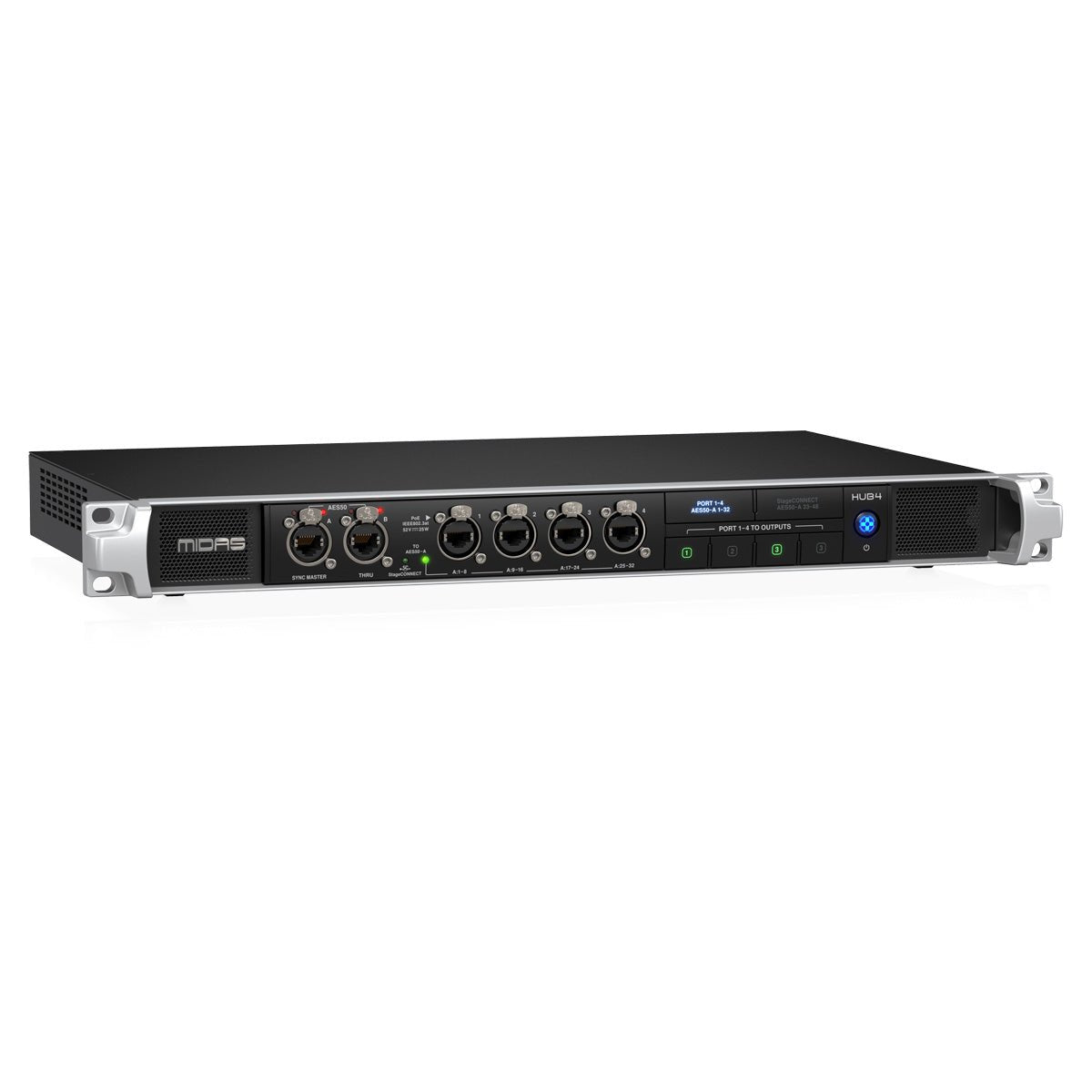

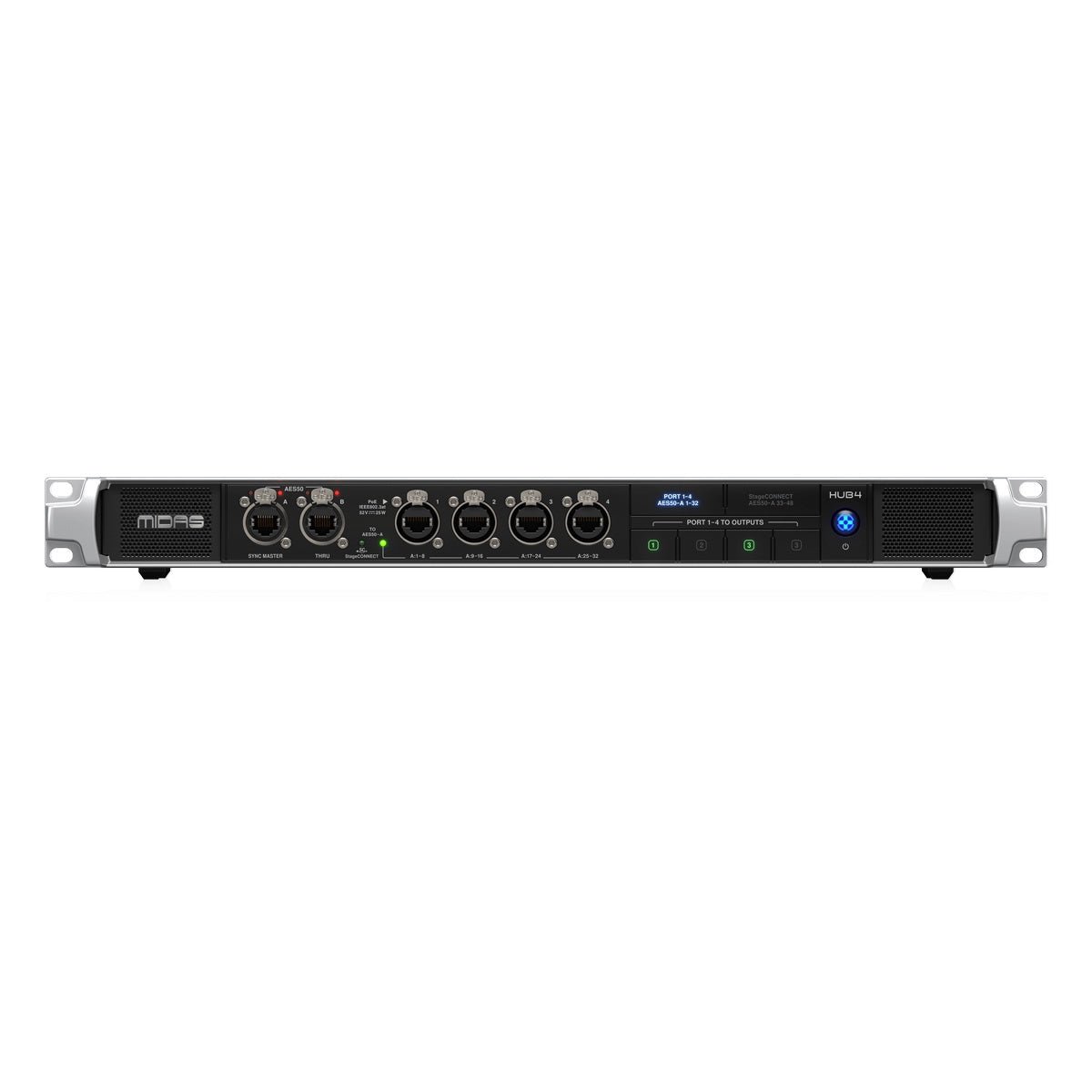

HUB4’s large backlit front panel buttons show when a device is connected to the corresponding AES50 port and indicate whether the upstream signals are being sent to the desired outputs.

Product Features

• Personal monitoring system hub with PoE remote powering for up to 4 DP48 personal mixers and compatible stage boxes

• AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz

• 16 balanced analogue outputs for sending 4x2 personal stereo mixes to IEM transmitters in the side rack

• Channel naming and Group assignments can be distributed from compatible M32 consoles

• Midas DL8 Stage Boxes can be connected and powered from ports 1-4

• Personal mix outputs can be monitored via AES50 upstream to connected consoles

• Supports remote control forwarding of a DP48 personal mixer from another DP48

• Front panel buttons for sending signals to analogue output groups 1-4, for StageConnect and for AES50-A upstream

• StageConnect output with phantom power for connecting other StageConnect devices, sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over any standard XLR microphone or DMX cable

• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length on all ports

• Features Neutrik etherCON AES50 network ports

• Rugged 1U chassis for durability in portable applications

• Auto-ranging universal switch-mode power supply
