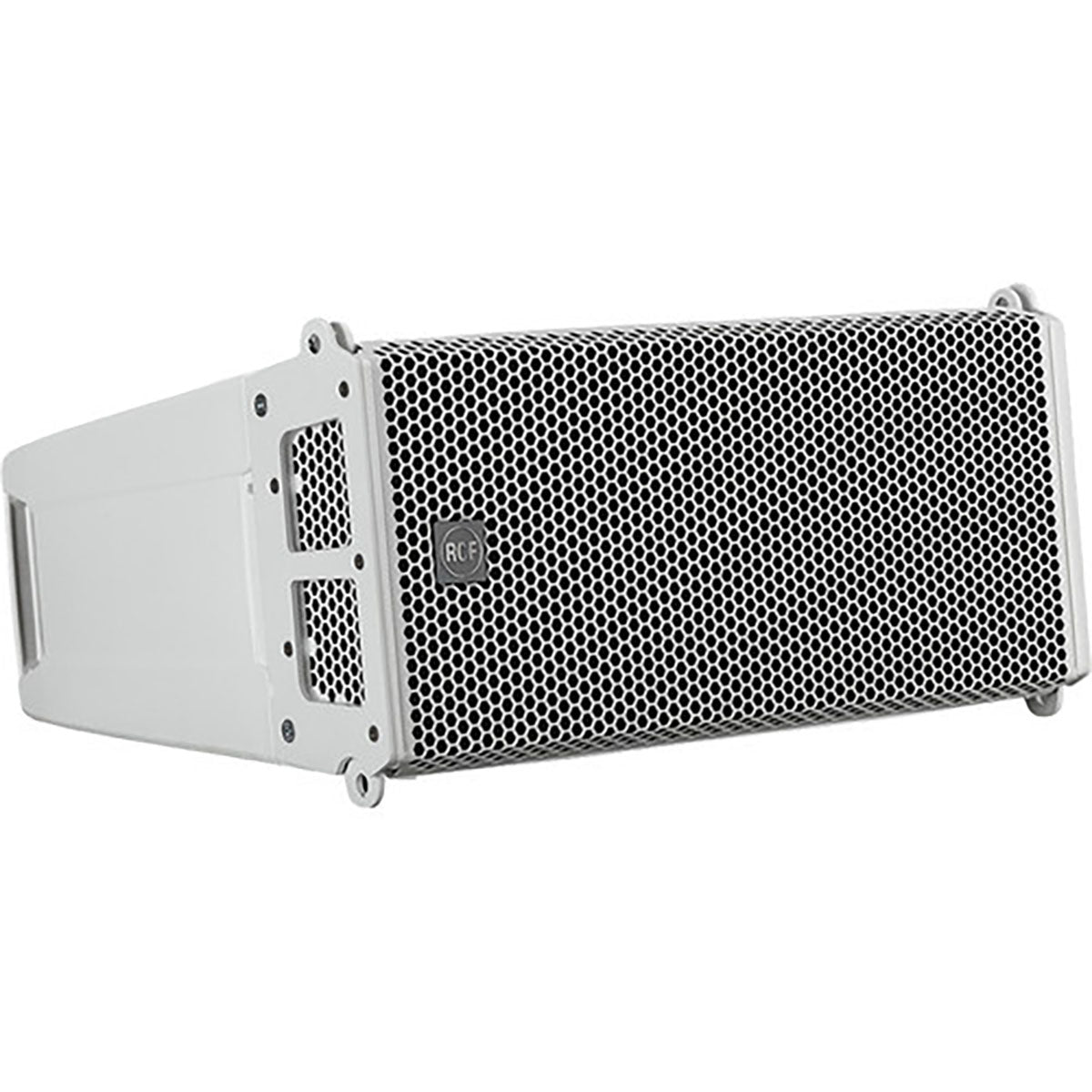

RCF HDL 6-A Active Line Array Module (White)

In Stock -
RCF HDL 6-A Active Line Array Module (White)
RCF HDL 6-A Active Line Array Module (White)

RCF HDL 6-A Active Line Array Module (White)

In Stock -
- +
  • SKU: HDL6A-W
  • Brand: RCF
  • Type: Live Sound
  • Availability: In Stock

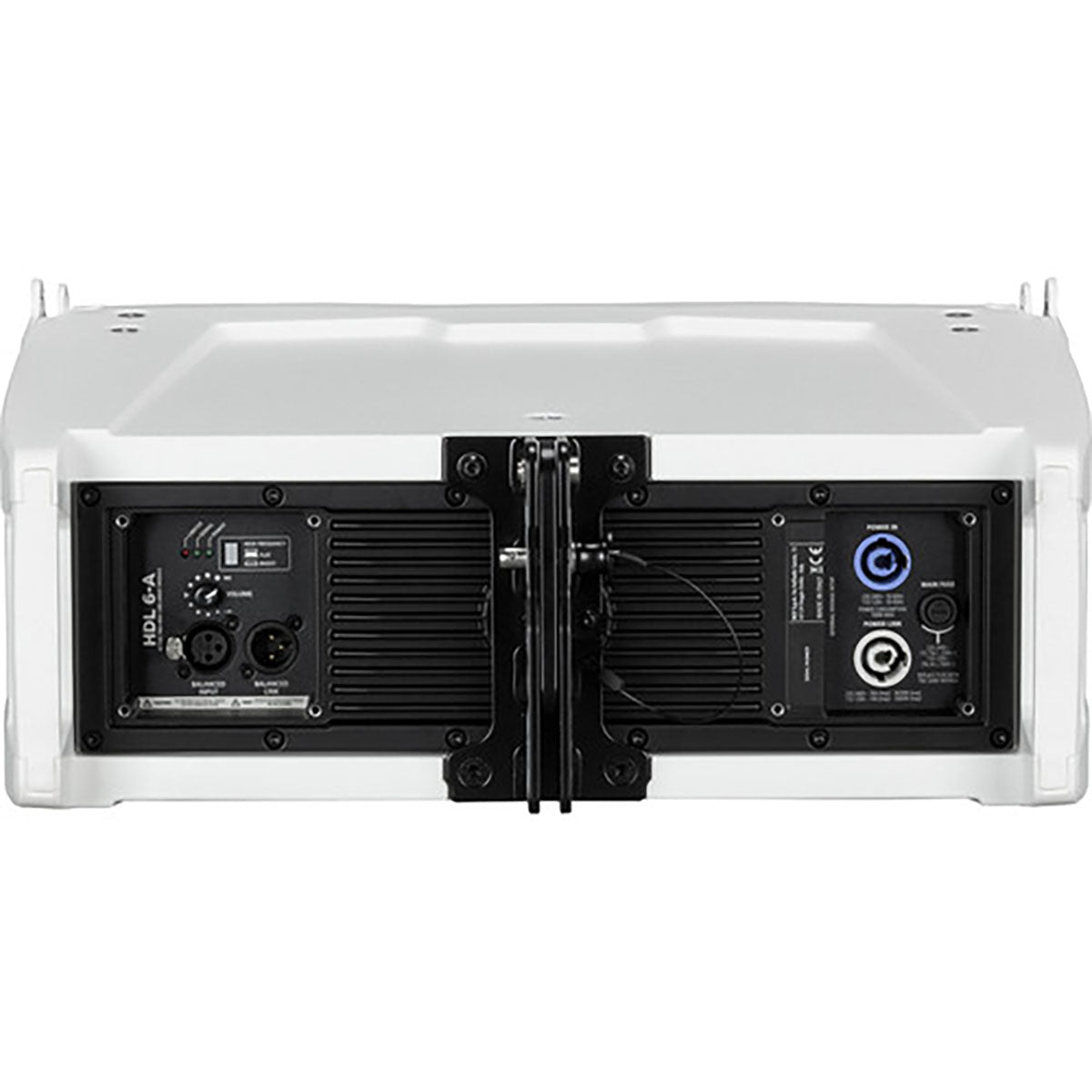

The white HDL 6-A Active Line Array Module from RCF is a 2-way active line array module designed for live sound reinforcement and installed sound applications. Powered by a 1400W 2-channel class-D amplifier, it features two 6" neodymium woofers for a solid bass reproduction and a 1.7" voice coil compression driver mounted on a precise 100 x 10° waveguide. The powerful DSP processes the sound including crossover, phase correction, limiting, and protection. The system accept female XLR input connectors and line-level signals from a mixing console or other signal source. The output XLR male connector provides a loop-trough for speaker's daisy chaining. The volume knob controls the volume of the power amplifier. The control ranges from maximum attenuation to the maximum level (maximum output).

  • Equipped with two aluminum rear handles for portability
  • Features RCF transducers
  • Integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped or spiral arrays
  • Wooden reinforced composite polypropylene enclosure
  • Integrated processing and cabling reduction
  • Digital amplifier with switch mode power supply and DSP controlled input section with selectable presets
  • Powered by a 1400W peak power digital amplifier, split 400W for the HF, and 1000W for the LF
  • HF projection is adjusted by the button on the rear of the cabinets
  • 2.0" inside-outside voice coil
  • Water-resistant fiber doped cone
  • Polycotton M-roll surround
  • High-power magnetic structure
  • Inside/outside coil doubles the dissipation surface
  • Adhesion area to the former is doubled
  • ND 340 high-power compression driver
  • 1.7" voice coil with a crossover point of 900 Hz
  • Coverage and dispersion control
  • Edge wound voice coils
  • Linear frequency response and maximum SPL output
