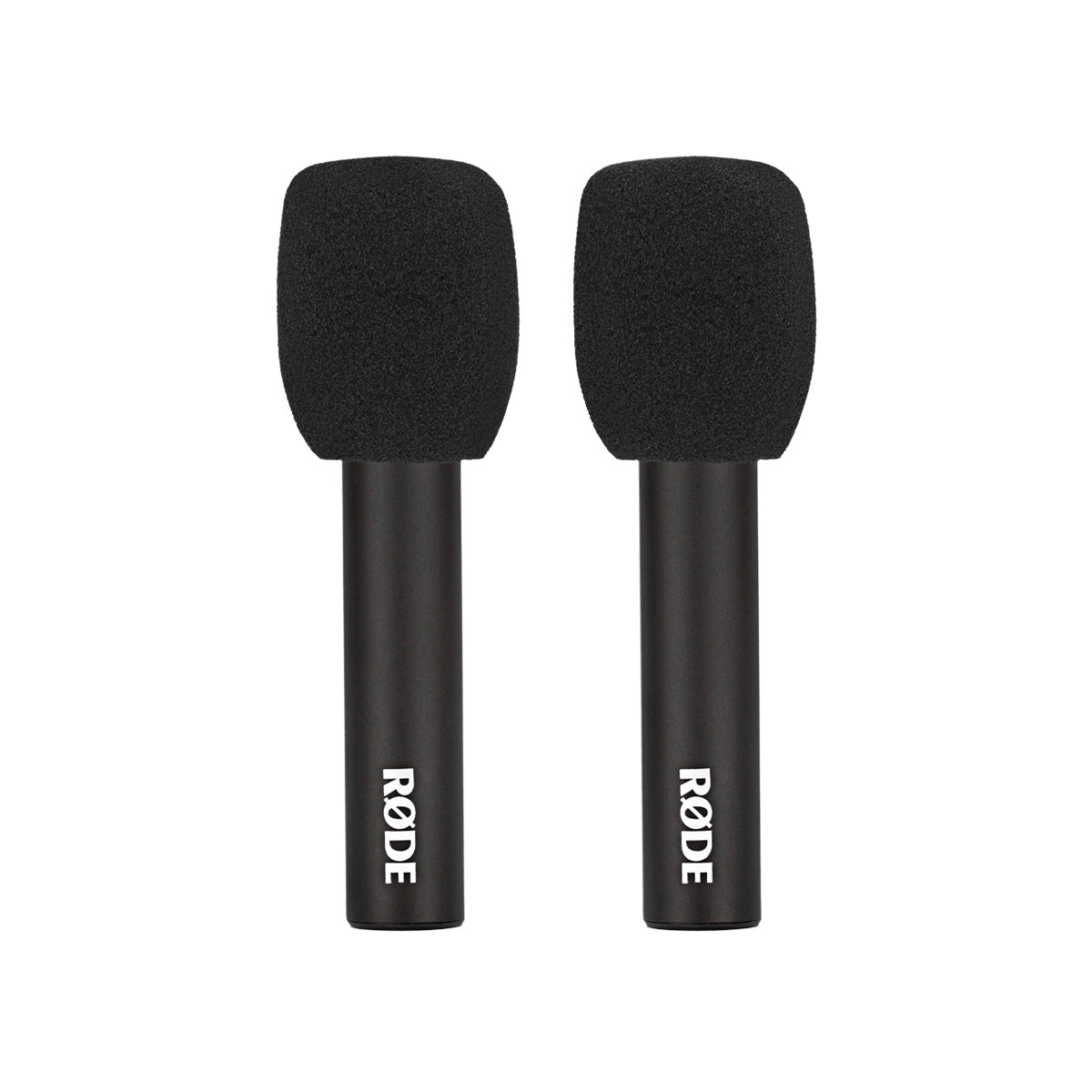

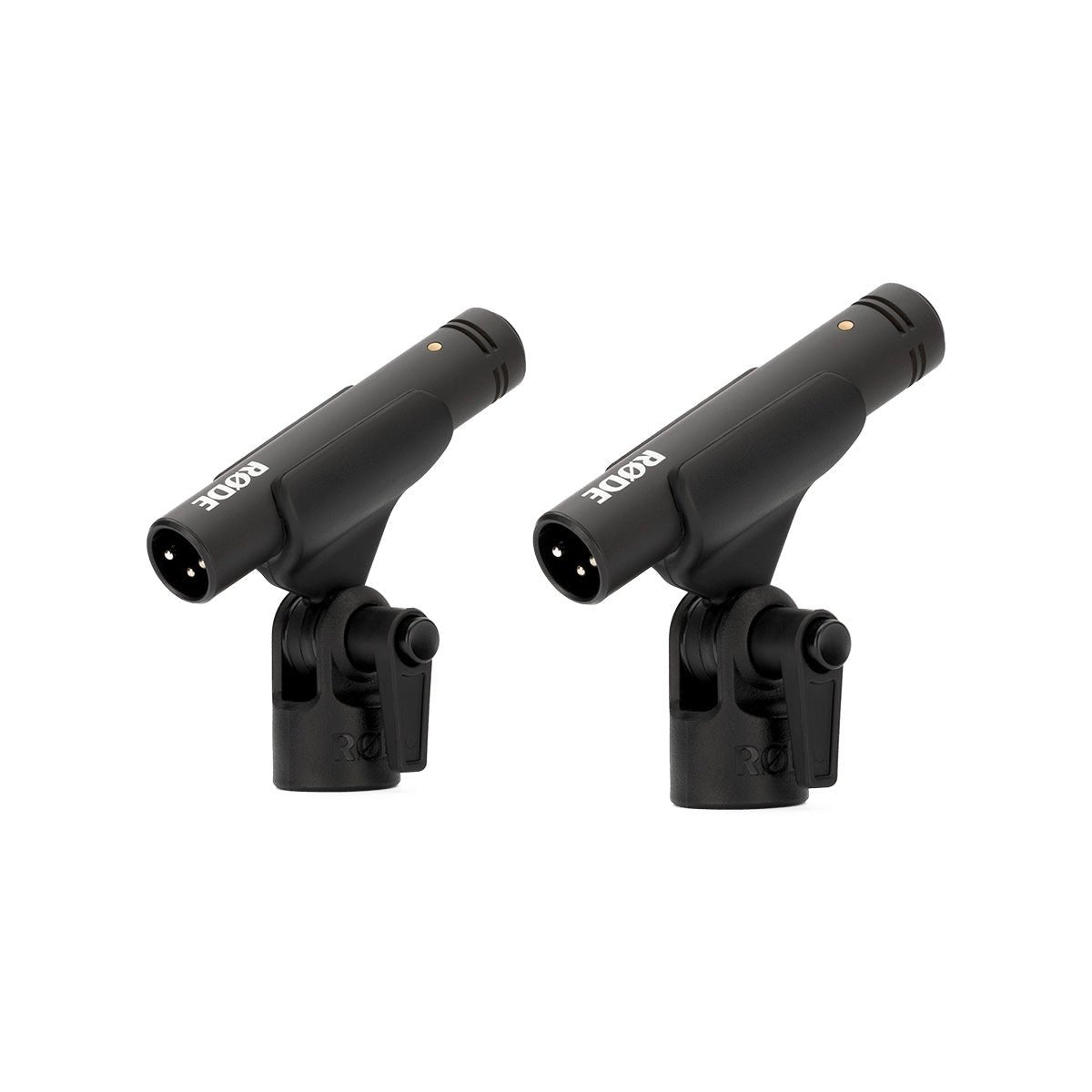

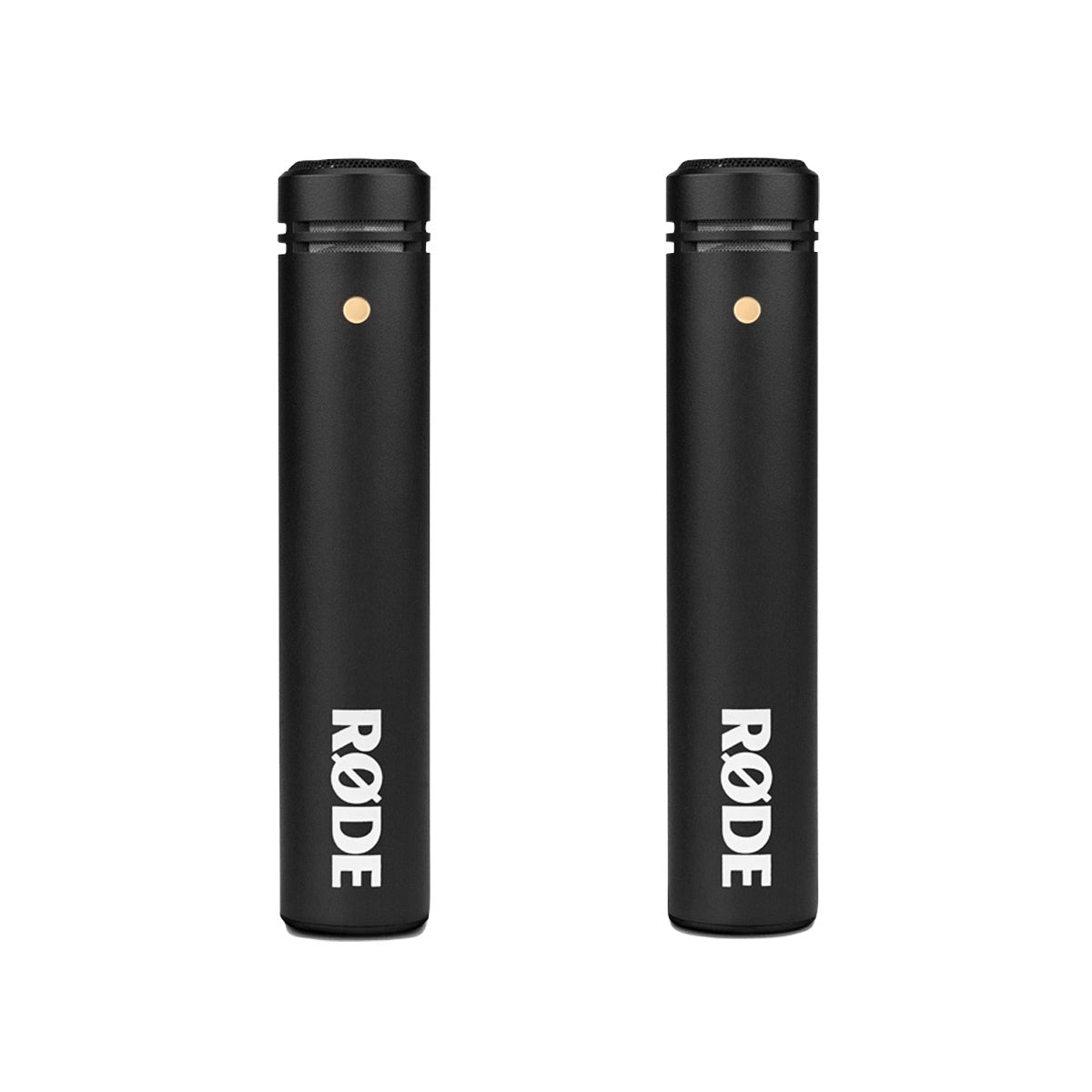

The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm ('pencil') condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.
- Matched of pair small-diaphragm cardioid condenser microphones
- 1/2-inch gold-sputtered capsules
- Carefully selected pair with no more than 1dB sensitivity variation
- Very low noise and full frequency response

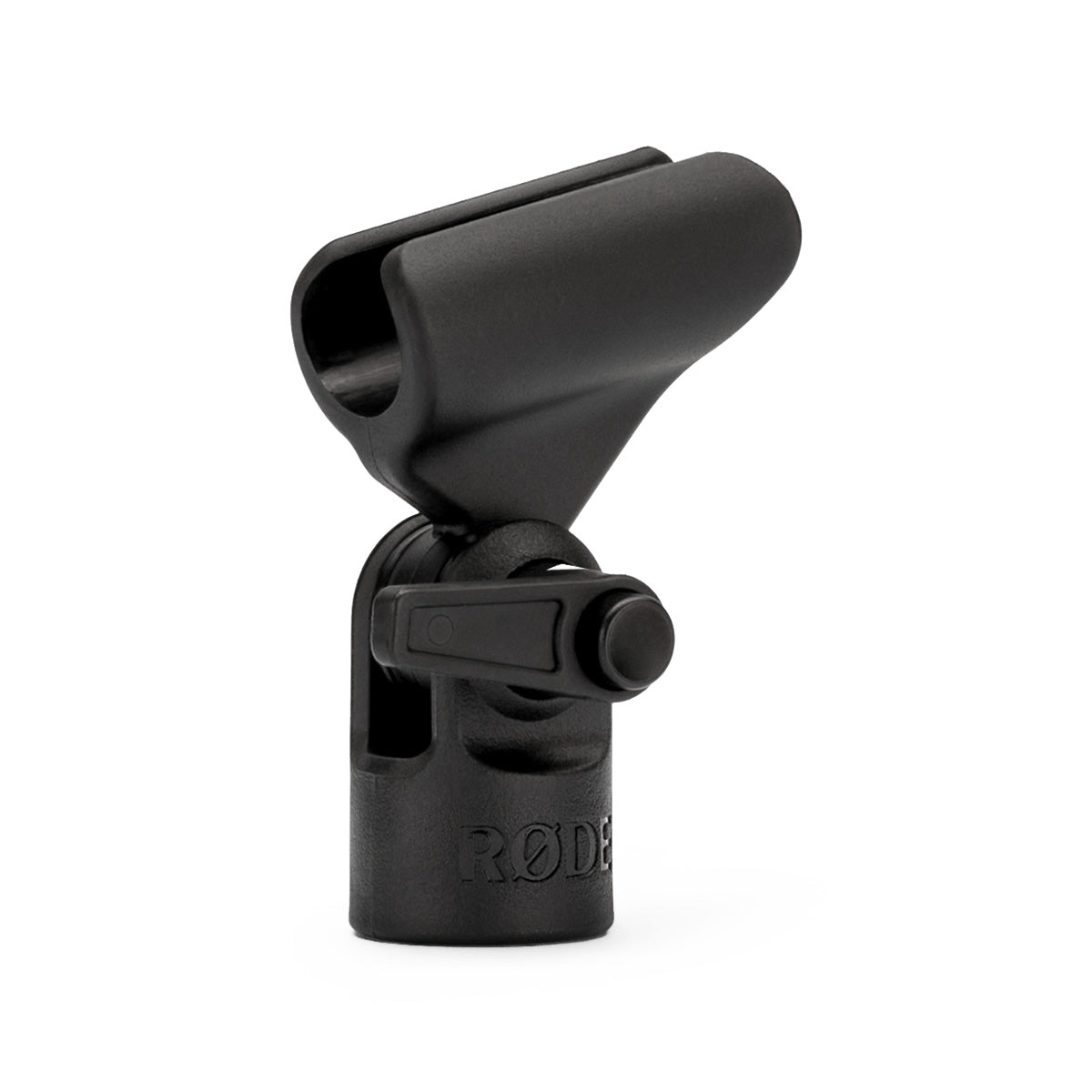

- Includes microphone clips and windshields
- 10-year warranty
Acoustic Principle: Pressure Gradient
Active Electronics: JFET impedance converter with bipolar output buffer
Frequency Range: 20Hz ~ 20kHz
Equivalent Noise: 19 dBA SPL (as per IEC651)
Maximum Output Level: +13.5 dBu
Sensitivity: -34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz
Dynamic Range: 121 dB SPL
Signal-to-noise Ratio: 75 dBA SPL (as per IEC651)
Power Requirements: P24 and P48
Output Connection: XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)
