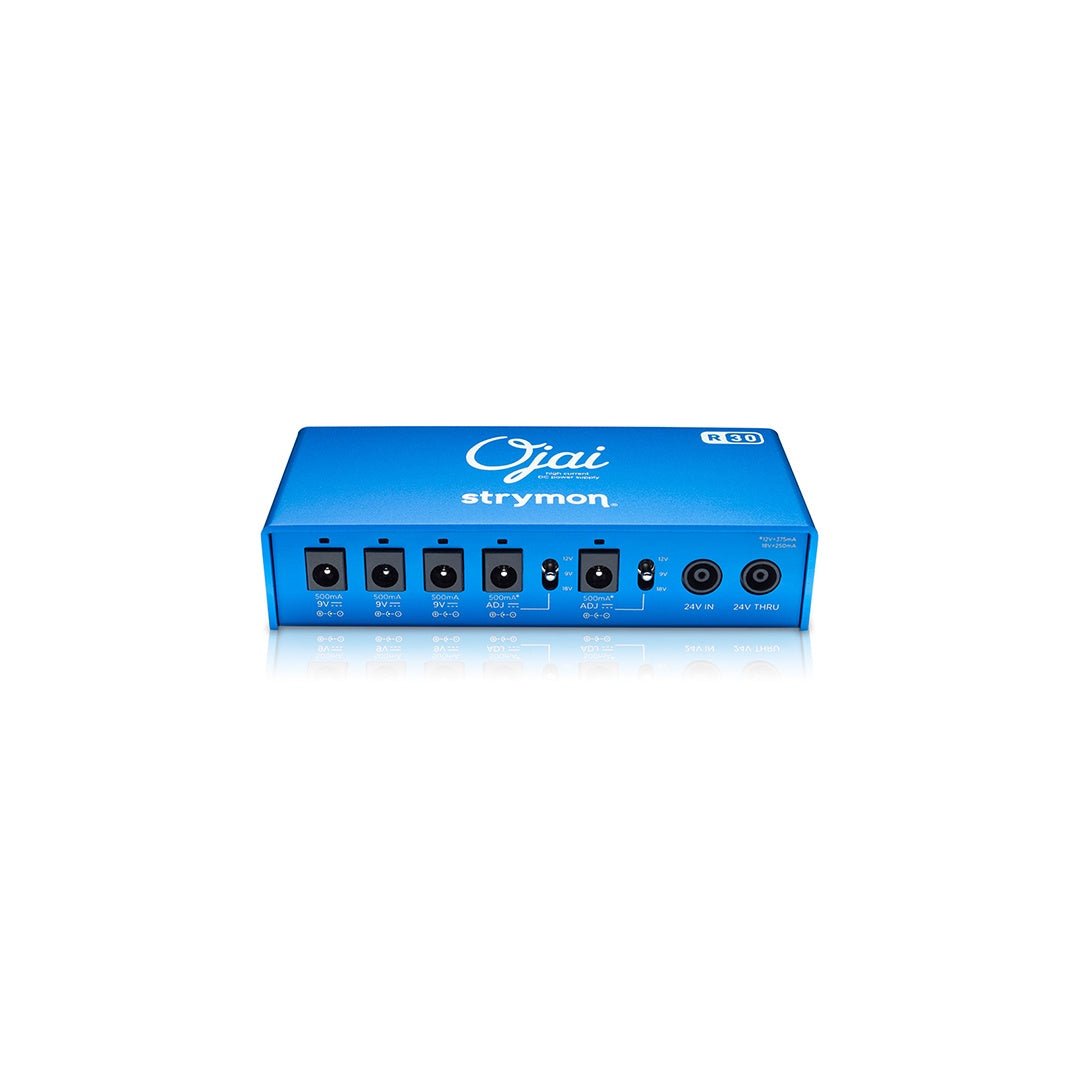

Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.

Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range. Ojai R30's all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC linenoise issues, allowing your pedals to sound like they were designed to sound.

With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.

Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to the Zuma power supply (sold separately).

Ins & Outs

• 5 high-current, fully isolated 9V outputs with center-negative polarity
  • 3 dedicated 9V outputs (500mA)
  • 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
• 500mA per output powers nearly any pedal
• 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
• 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
• 24V Thru jack allows connection to additional Strymon Ojai (sold separately)

Technology

• Five individual custom transformers (one per channel) deliver clean, consistent power
• Worldwide power compatibility insures no-hassle international touring
• Energy efficient, compact design

Construction

• Lightweight and rugged anodized midnight blue aluminum chassis
• Ultra low profile design fits under nearly any pedalboard
• Designed and built in the USA
