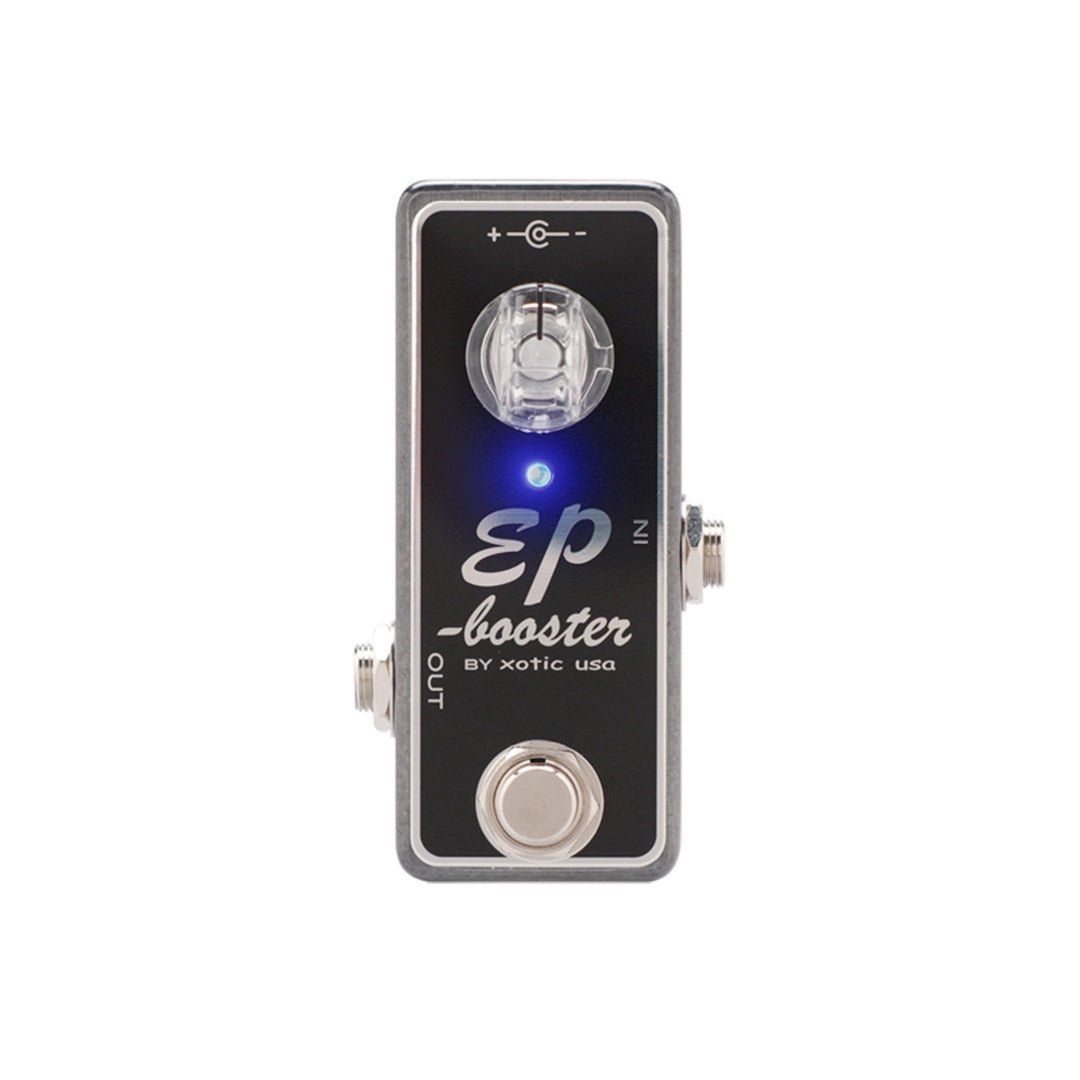

The magical EP-3 captures the celebrated tones of the world’s most famous players. The EP-Booster, great tone starts here!
True bypass for eliminating any signal interference when switched off. Can be used with AC adaptor (optional) or 9V Battery.
What do the tones of renowned guitarist such as Jimmy Page, EVH and Eric Johnson have in common? They all used the legendary echo machine EP-3 as a pre-amp. We’ve captured that magic in the Xotic Effects pedalboard staple, EP Booster.
We’ve used the highest quality parts available with a discrete FET design and low impedance output, the EP Booster provides up to +20dB of unadulterated boost with multi-dimensional, shimmering highs and lows, and no ear fatigue.
The internal DIP switches let you choose the boost frequencies, and EQ settings.
Internal dip switch has 3 variations to help dial in your tone:
- Unity Gain
Dimensions (W/D/H): 3.5" x 1.5" x 1.5" (89mm X 38mm X 38mm)
Weight: 0.57 lbs. (260g)
Bypass: True Bypass Switching
Power Consumption: 9VDC/5mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 1M ohm
Output Impedance: 1k ohm
