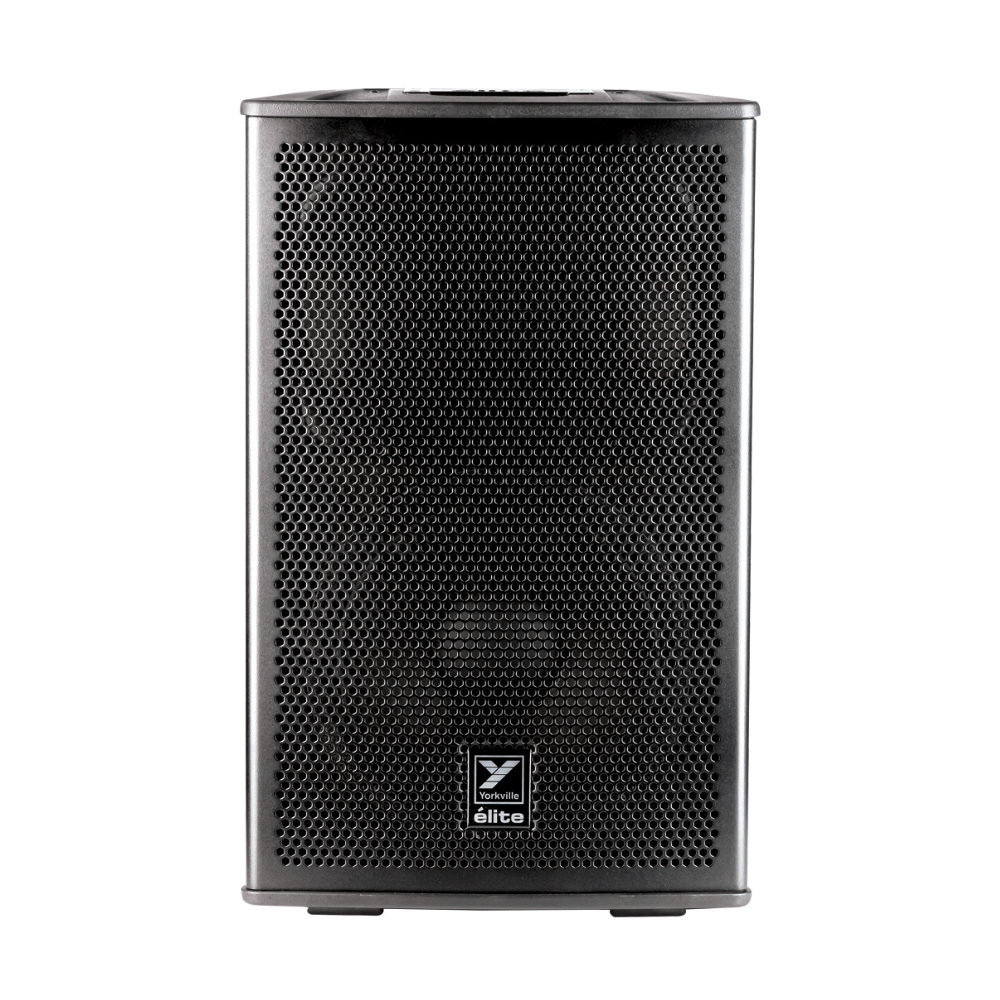

The EF12P is a 2-way active loudspeaker with innovative processing. Use it as a front-of-house speaker, personal monitor wedge, or self-contained compact PA for paging and playback with no mixer required.

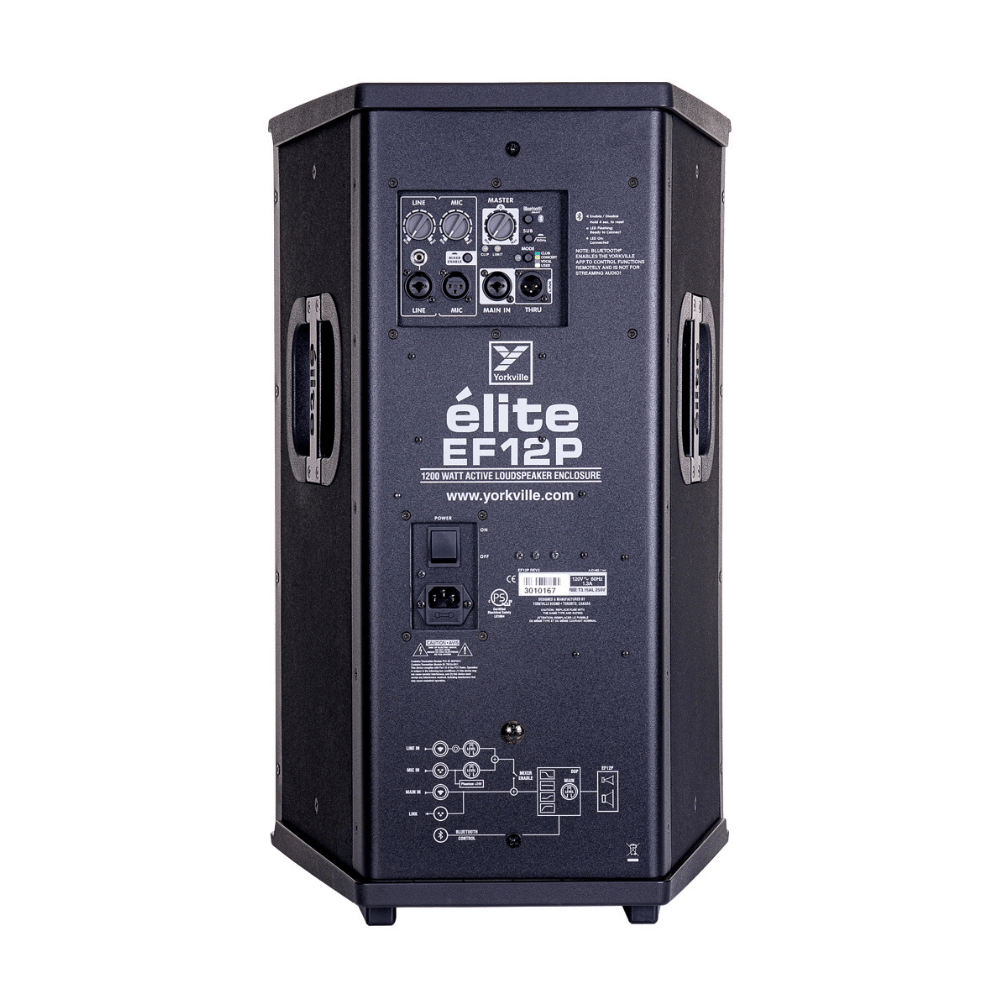

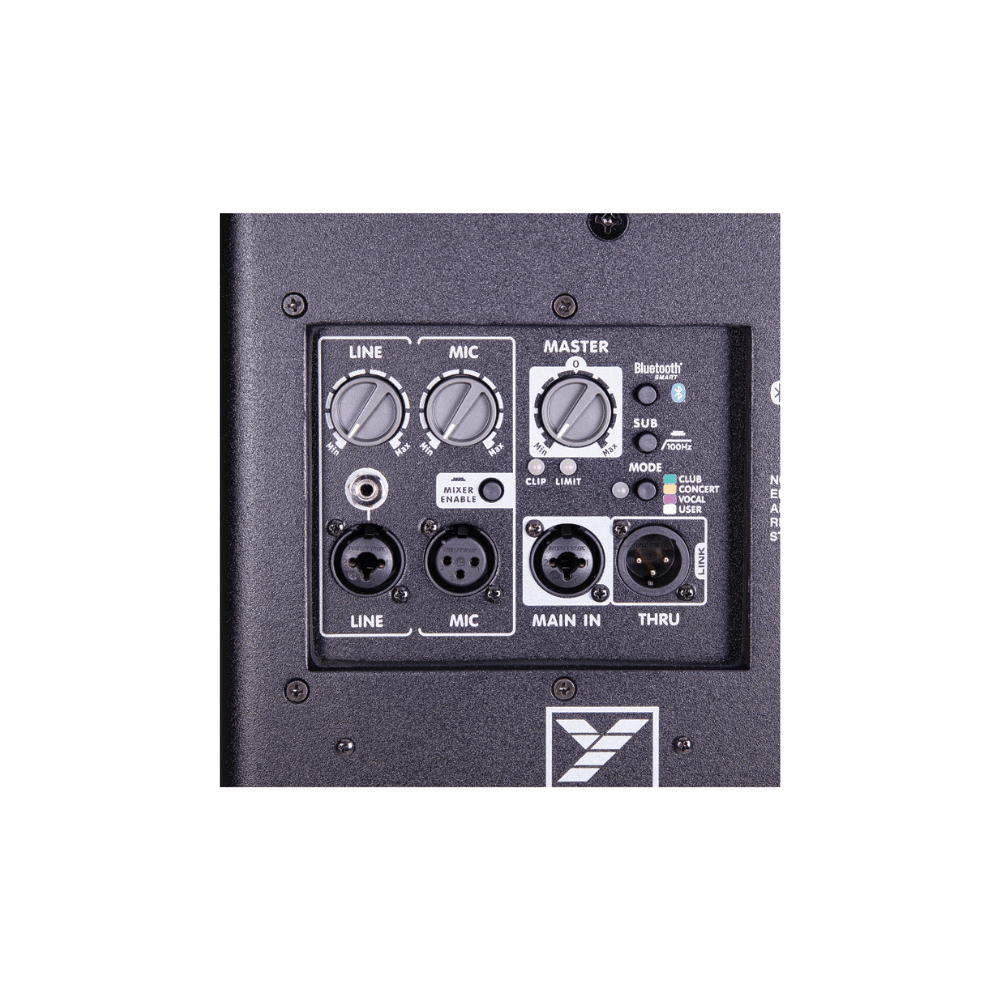

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4” TRS line level connections. An internal mixer can be engaged to add 1/8” TRS and 1/4” TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn’t required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app.

A 900-watt amplifier powers the 12-inch woofer, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs.

Class D amplifiers, neodymium speaker magnets, and Baltic birch construction keep the total weight below 60 pounds while maintaining classic Elite ruggedness and durability.

Features

• 2400 W Peak Power (1200 W Program)
• 12” Neodymium Woofer with 3” Voice Coil
• 3” Titanium-Diaphragm Compression Driver
• Multiband DSP Limiting with 4 Preset Playback Performance Modes
• iOS and Android App for Added Cabinet Control
• ABS-Coated Birch Plywood Cabinet Construction
• Made in Canada
